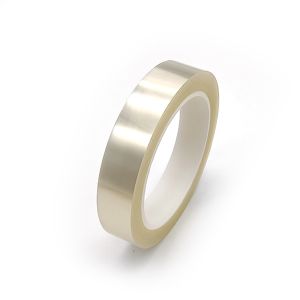

0.075mm Backing UV Release Tape 3.8mil High Initial Adhesion For
Glass Cutting
High performance UV adhesive polyester UV tape with high initial
peeling strength
UV tape is a high performance product coating UV adhesive on the surface
of polyester. It has high initial peeling strength. Low adhesion
after UV irradiation and no residue after peeling off.
Features And Benefits:
1. High initial adhesion.
2. Low adhesion after UV curing, easy to separate.
Properties:
| Item | Typical Value |
| Imperial | Metric |
| Backing | 3.0mil | 0.075mm |
| Total Thickness | 3.8±0.2mil | 0.095±0.005mm |
| Peeling strength | Before UV | 1.8～5.7lbs/in | 8～10N/25mm |
| After UV | 0.11～0.36lbs/in | 0.05～0.15N/25mm |
| Tensile Strength | ≥57.13lbs/in | ≥10(KN/M) |
| Elongation | ≥120% | ≥120% |
| UV Gelation energy( wave length 365mm) | ≥200mJ/cm2 | ≥200mJ/cm2 |
Construction:
Application:
1. Wafer, component, glass cutting and grinding process cutting.
2. 3D glass bonding process, component packaging transfer.
3. Soft lithium battery protection, metal and anti-static
protection.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of
direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored
in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other
contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Why choose us?
1. Provide samples and best service.
2. Good production capacity and fast delivery.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. Good reputation and after-sales service team.
Notes:
Please be advised that this technical data sheet is written based
on our lab tests and experience only. Customer is responsible to
determine the suitability of the product meets intended application
requirements before approved for use.
