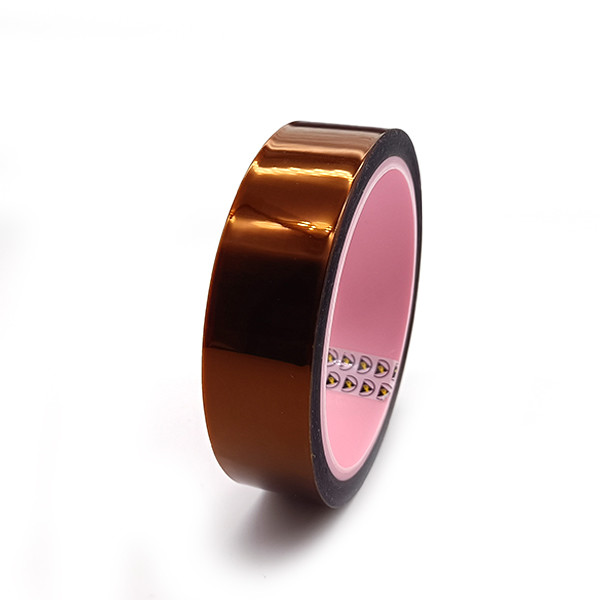

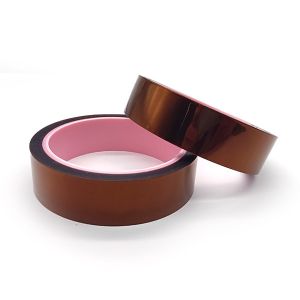

2.2mil Anti Static Polyimide Film Adhesive Tape high temperature resistant

Ask Lasest Price
Brand Name :	KHJ
Model Number :	E1-IH803
Certification :	RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	10000 M2/Day
Delivery Time :	1 Week

Add to Cart

Product Details
Company Profile

2.2mil Anti Static Polyimide Film Adhesive Tape high temperature resistant

khj khj email khj workshop

2.2mil Anti Static Polyimide Film Adhesive Tape High Temperature Resistant

Anti-static polyimide high temperature resistant masking tape E1-IH803 with excellent tensile strength and elongation

E1-IH803 is a polyimide film backed silicone adhesive tape with excellent heat resistance and low static discharge properties.

Features And Benefits:

1.Low electrostatic discharge at unwind and removal.

2.Resistant high temperature up to 280℃ for 10 minutes

3.Excellent tensile strength & Elongation

4.RoHS Compliant

Polyimide Film Adhesive Tape E1-IH803 Properties:

Item	Typical Value
Item	Imperial	Metric
Backing	1.0mil	0.025mm
Total Thickness	2.2mil	0.055±0.005mm
Tack	/	≥26(J.DOW/#)
Adhesion to Steel	0.91～1.37lbs/in	4～6N/25mm
Tensile Strength	≥20lbs/in	≥3.5(KN/M)
Elongation	≥45%	≥45%
Surface Resistance	10^6~8ohms	10^6~8ohms
Static Discharge (Removal from roll)	<100V	<100V
Maximum Operating Temperature	536℉	280℃

Storage:

1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2.Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder:

1.Surface should be clean, dry, free of dust, oil or other contaminants.

2.Proper pressure required by roller, hand or press when applying.

3.Avoid repeat sticking to prevent adhesion decrease.

Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.

Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
